SMD POWER INDUCTORS NR30系列 NR30 SERIES ■ FEATURES/特性 ● Magnetically shielded construction (閉磁路構造設計) ● Compact and thin (輕便薄小) ● Strong ability to resist EMI(抗EMI能力強) ● Drop impact resistance i...

產品詳情

深圳市興凱鼎電子有限公司
K-DING ELECTRONIC CO.,LTD.

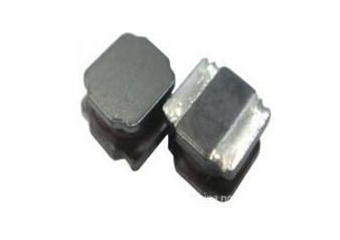

SMD POWER INDUCTORS NR30系列

NR30 SERIES

■ FEATURES/特性
●	Magnetically shielded construction (閉磁路構造設計)
●	Compact and thin (輕便薄小)
●	Strong ability to resist EMI(抗EMI能力強)
●	Drop impact resistance is strong, durable(抗沖擊性強,經久耐用)
■ Application (用途)
●	Mobile networks and digital movie camera; Flat-panel TVS, set-top boxes, blu-ray DVD; Notebook computers, desktop computers, servers, graphics CARDS; Portable game consoles, personal navigation system, multimedia; Automotive products; Communication equipment(移動網絡和數字電影攝影機;平板電視,機頂盒,藍光DVD、筆記本電腦、臺式電腦、服務器、顯卡;便攜式游戲機,個人導航系統,多媒體,汽車產品;通信設備)

■ Product Identification/產品識別
NR	3012	3R3	M	S	Z
(1)	(2)	(3)	(4）	（5）	（6）

1.	Series name/產品名稱
2.	Dimensions/產品尺寸
3.	Inductance value/電感值
4.	Product name/允許公差（J 5%, K 10%, L 15%, M 20%, N 30%）
5.	Internal Serial No./內部序列號（S：系列品，T:特殊品）
6.	The packing way/包裝方式（Z:冷封裝，R:熱封裝）

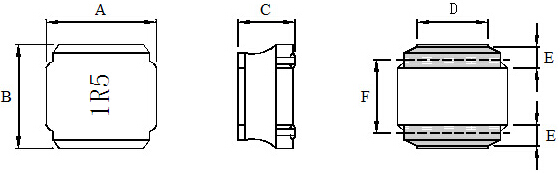

■ Mechanical dimensions/機械尺寸

Unit In mm

Type	A	B	C	D	E	F
Type	±0.2	±0.2	(max)	±0.2	±0.2	±0.2
NR3010	3.0	3.0	1.0	2.5	2.5	1.5
NR3012	3.0	3.0	1.2	2.5	2.5	1.5
NR3015	3.0	3.0	1.5	2.5	2.5	1.5
NR3018	3.0	3.0	1.85	2.5	2.5	1.5
NR3020	3.0	3.0	2.0	2.5	2.5	1.5

■ Electrical Characteristics for CR3010 Series/CR3010系列電子特性規格

Part Number	Inductance	Test Freq.	DCR (mΩ)	IDC (A)
Part Number	(μH)	(Hz)	(max)	(max)
產品料號	電感值 (L)	測試頻率	直流阻抗	定格電流
NR3010-1R0□-S-Z	1.0	100KHZ/0.25V	65.0	1.40
NR3010-1R2□-S-Z	1.2	100KHZ/0.25V	65.0	1.25
NR3010-1R5□-S-Z	1.5	100KHZ/0.25V	80.0	1.20
NR3010-2R2□-S-Z	2.2	100KHZ/0.25V	110.0	1.15
NR3010-2R7□-S-Z	2.7	100KHZ/0.25V	130.0	1.00
NR3010-3R3□-S-Z	3.3	100KHZ/0.25V	145.0	0.97
NR3010-3R6□-S-Z	3.6	100KHZ/0.25V	165.0	0.95
NR3010-4R7□-S-Z	4.7	100KHZ/0.25V	225.0	0.75
NR3010-6R8□-S-Z	6.8	100KHZ/0.25V	305.0	0.55
NR3010-100□-S-Z	10.0	100KHZ/0.25V	400.0	0.50
NR3010-120□-S-Z	12.0	100KHZ/0.25V	505.0	0.43
NR3010-150□-S-Z	15.0	100KHZ/0.25V	610.0	0.42
NR3010-220□-S-Z	22.0	100KHZ/0.25V	930.0	0.35

★ Operating Temp. : －40℃ ~ ＋85℃

★Inductance drop=30% typ. at IDC.

■ Electrical Characteristics for CR3012 Series/CR3012系列電子特性規格

Part Number	Inductance	Test Freq.	DCR (mΩ)	IDC (A)
Part Number	(μH)	(Hz)	(max)	(max)
產品料號	電感值 (L)	測試頻率	直流阻抗	定格電流
NR3012-R47□-S-Z	0.47	100KHZ/0.25V	33	2.2
NR3012-R82□-S-Z	0.82	100KHZ/0.25V	40	2.05
NR3012-1R0□-S-Z	1.0	100KHZ/0.25V	48.0	1.90
NR3012-1R5□-S-Z	1.5	100KHZ/0.25V	55.0	1.62
NR3012-2R2□-S-Z	2.2	100KHZ/0.25V	75.0	1.20
NR3012-3R3□-S-Z	3.3	100KHZ/0.25V	100.0	1.05
NR3012-4R7□-S-Z	4.7	100KHZ/0.25V	120.0	0.90
NR3012-6R8□-S-Z	6.8	100KHZ/0.25V	190.0	0.75
NR3012-100□-S-Z	10.0	100KHZ/0.25V	265.0	0.60
NR3012-150□-S-Z	15.0	100KHZ/0.25V	430.0	0.45
NR3012-220□-S-Z	22.0	100KHZ/0.25V	630.0	0.42

★ Operating Temp. : －40℃ ~ ＋85℃

★Inductance drop=30% typ. at IDC.

■ Electrical Characteristics for CR3015 Series/CR3015系列電子特性規格

Part Number	Inductance	Test Freq.	DCR (mΩ)	IDC (A)
Part Number	(μH)	(Hz)	(max)	(max)
產品料號	電感值 (L)	測試頻率	直流阻抗	定格電流
NR3015-1R0□-S-Z	1.0	100KHZ/0.25V	37.0	2.32
NR3015-1R5□-S-Z	1.5	100KHZ/0.25V	50.0	2.00
NR3015-2R2□-S-Z	2.2	100KHZ/0.25V	60.0	1.60
NR3015-3R3□-S-Z	3.3	100KHZ/0.25V	80.0	1.32
NR3015-4R7□-S-Z	4.7	100KHZ/0.25V	125.0	1.10
NR3015-6R8□-S-Z	6.8	100KHZ/0.25V	200.0	0.85
NR3015-100□-S-Z	10.0	100KHZ/0.25V	250.0	0.72
NR3015-220□-S-Z	22.0	100KHZ/0.25V	460.0	0.52

Operating Temp. : －40℃ ~ ＋85℃

★Inductance drop=30% typ. at IDC.
